Steel Frame Workshop Buildings Prefabricated Light Steel Structural Plants
Project Description:
Steel Structure workshop is a kind of metal building workshop, which is made of high-strength steel and offers excellent insulation and durability. It is designed with a portal structure and provides optional insulation so that it can meet the needs of the customers. The walls and roofs of the steel structure workshop are made of sandwich panel or color steel sheet, and the purlin is made of C-section or Z-section steel. As for the door, it can be a rolled up door or a sliding door.
Materilas:
1. The main frame (columns and beams) is made of welded H-style steel.
2. The columns are connected with the foundation by pre-embedding anchor bolt.
3. The beams and columns, beams and beams are connected with high intensity bolts.
4. The envelop construction net is made of cold form C-style purlins.
5. The wall and roof are made of color steel board or color steel sandwich panels, which are connected with the purlin by Self-tapping nails.
6. Doors and windows can be designed at anywhere which can be made into normal type, sliding type or roll up type with material of PVC, metal, alloy aluminum, sandwich panel and so on.
| Specifications: | |
| Main steel fram | Welded H section steel beam and comlumns, painted or galvanized |
| Secondary frame | Galvanized C/Z purlin , steel bracing , tie bar , knee brace , edge cover etc. |
| Roof panel | Steel color sheet |
| Wall panel | Corrugated Steel Color Sheet |
| Tie Rod | Circular Steel Tube |
| Brace | Round Bar |
| Knee Brace | Angle Steel |
| Water downpipe | PVC pipe |
| Door | Aluminium alloy shutter door |
| Windows | Aluminum alloy push-pull window |
Application:
Steel structure workshops offer a combination of strength, durability, and adaptability, making them suitable for a wide range of industrial, commercial, and educational applications. Their open interior spaces, clear-span design, and ability to accommodate various equipment and machinery make them a popular choice in many sectors.
Company Profile
Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term cooperation with countries along the " Belt and Road".
Production Capacity:
| Line Name | Line Qty | Annual Output |
| composite board production lines | 2 | more than 1,000,000 meters |
| color steel plate production lines | 5 | 2,000,000 meters |
| H-beam CNC production lines | 2 | 20,000 tons |
| C-beam production line | 1 | 2,500 tons |
| Z-beam steel productions line | 1 | 2,000 tons |
Products & Image:
Gusite’s main products include steel structure industrial buildings, commercial buildings, airports, stadiums, greenhouses, light steel houses, livestock breeding houses, interior and exterior decoration materials, various doors and windows, etc.
Industrial builidngs : Commercial buildings:

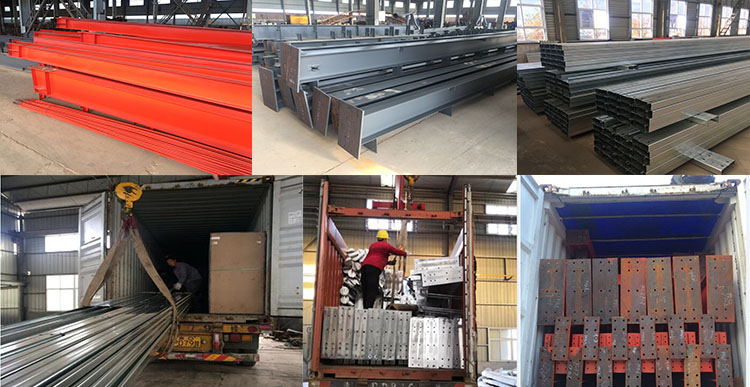

Product packaging:
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.
2. Fasteners are packed in wooden cases
3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.
4. Container type: 40ft HC, , 20ft GP
